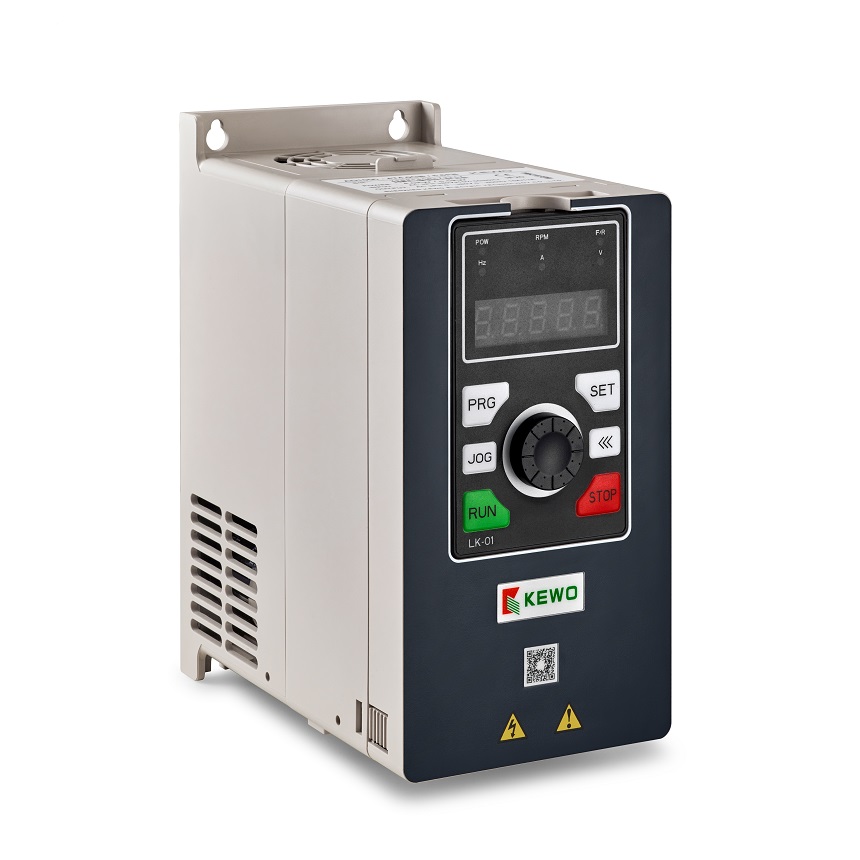

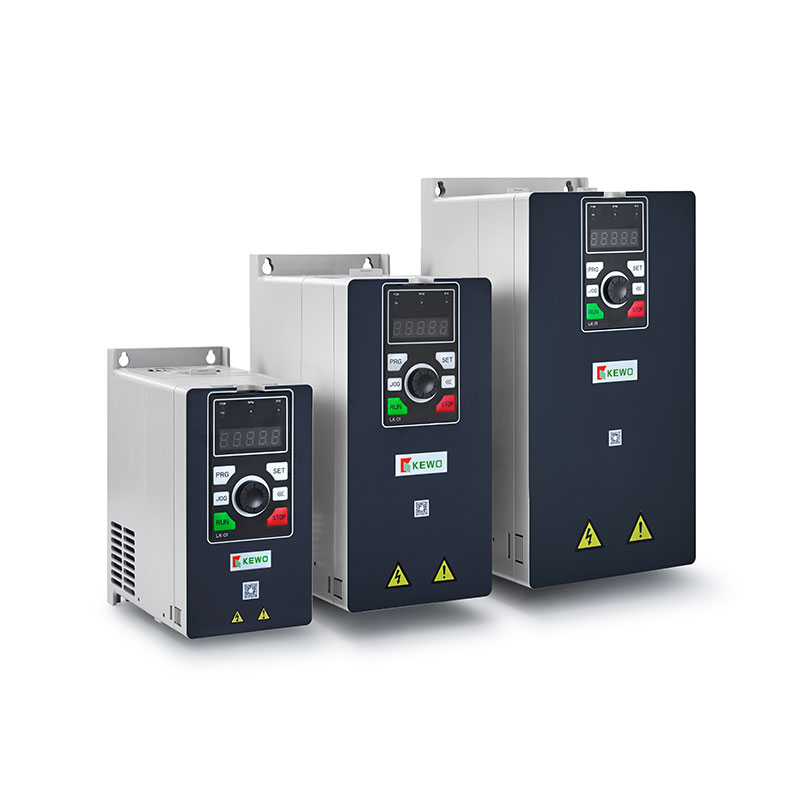

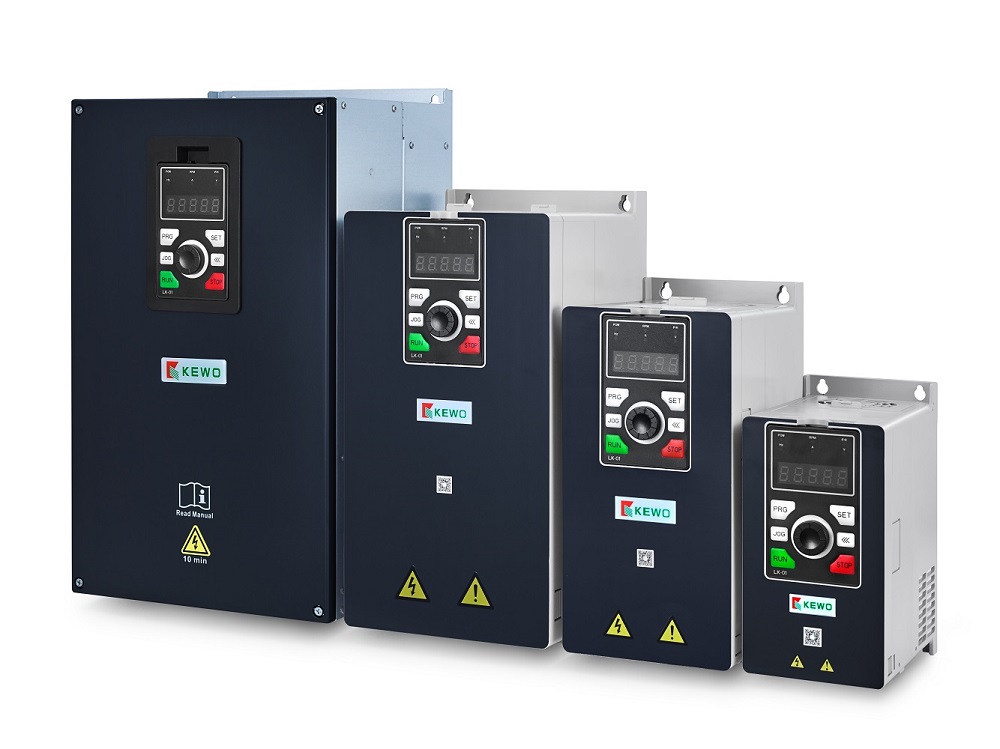

AD1000 series VFD Specification
Single phase, 220V, 0.4kw to 5.5kw ▎ Three phase, 220V, 0.75kw to 75kw ▎ Three phase, 380V/660V/1140V, 0.75 to 630kw
Power: Three-phase 380-480VAC 0.4~800kW
◆ Supports various types of motor control
◆ Support a variety of mainstream communication protocols
◆ Easy-to-use functions and flexible expansion
◆ Complete machine protection, long design life

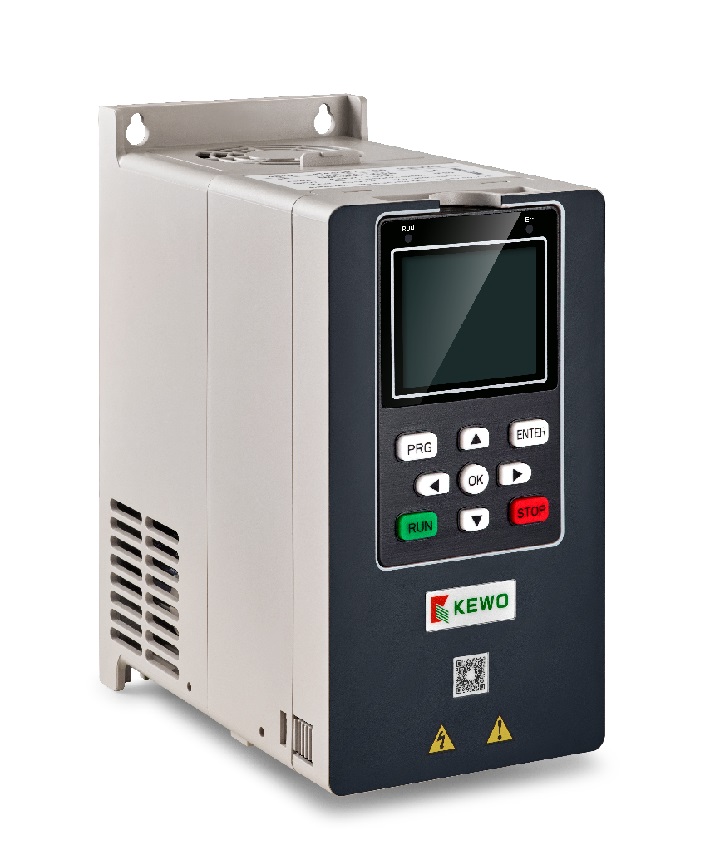

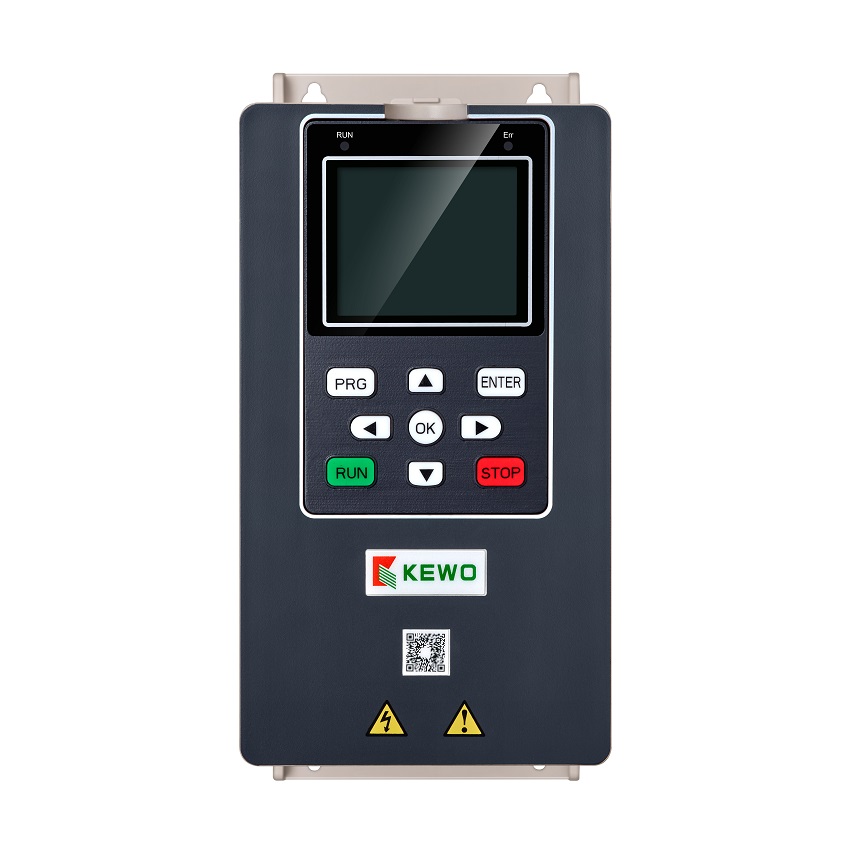

◆ Support LCD keyboard and parameter copy function
◆ Simple and easy to use:
compatible with our old model AD1000 usage habits, seamless connection
◆ High performance:
3% torque accuracy, 3% torque linearity
◆ High reliability:
The design is suitable for high dust, high humidity and high heat, and is more reliable in harsh environments
AD1000 series VFD Features
It has V/F, OLV( open loop vector control ), CLV ( close loop vector control), Compatible with variety of encoder such as collector, differential / rotary transformer .
◆ Wide speed control range
◆ Response speed improving
◆ High torque output under low speed to meet some big inertia load conditions
◆ Torque control in OLV and CLV
◆ Powerful PID function
◆ Stall protection function
◆ Speed tracking restart function
◆ S curve function
◆ 16 segment speed circle running, easy to configure
◆ Advanced energy saving technology

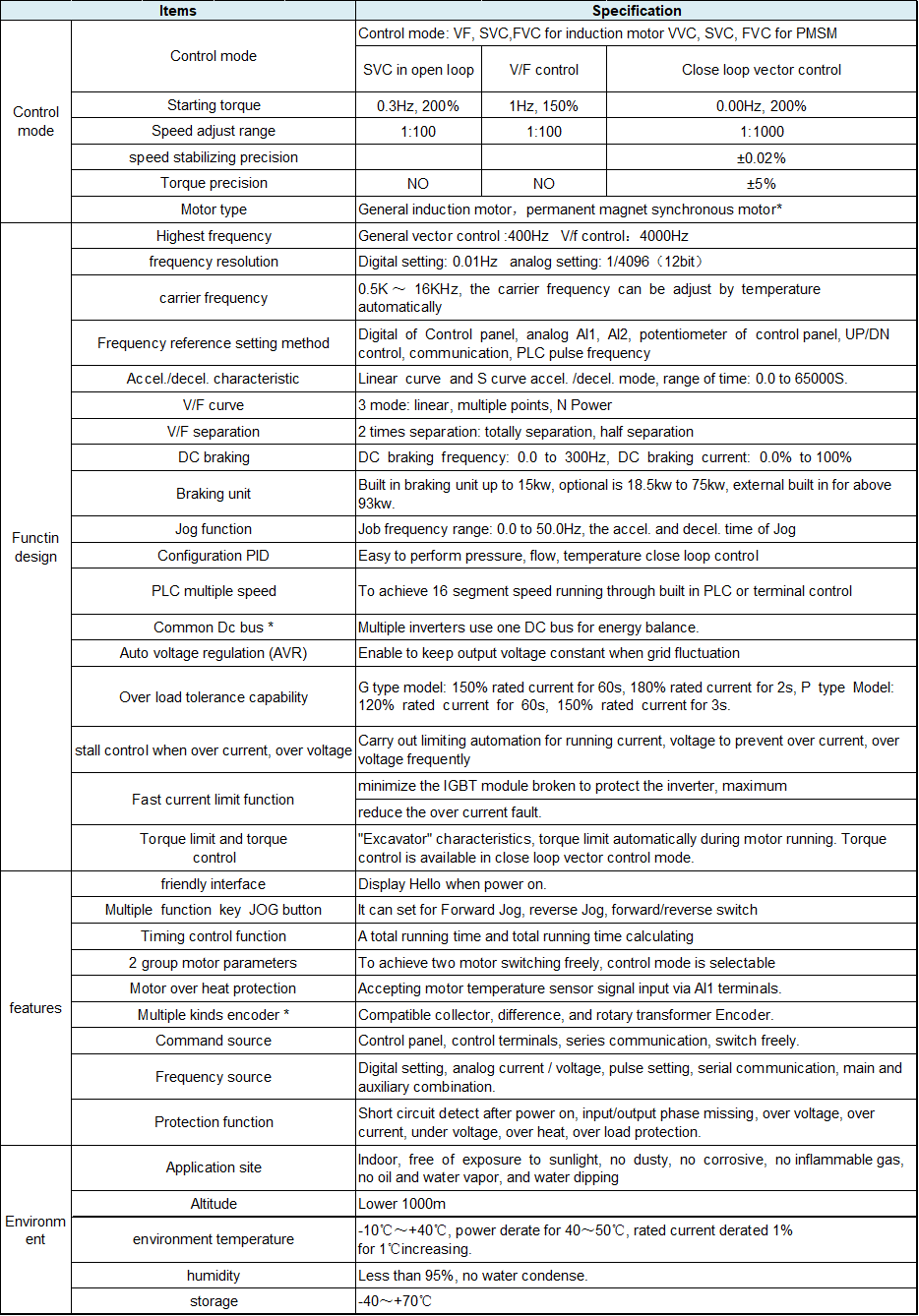

AD1000 series VFD Technical specification

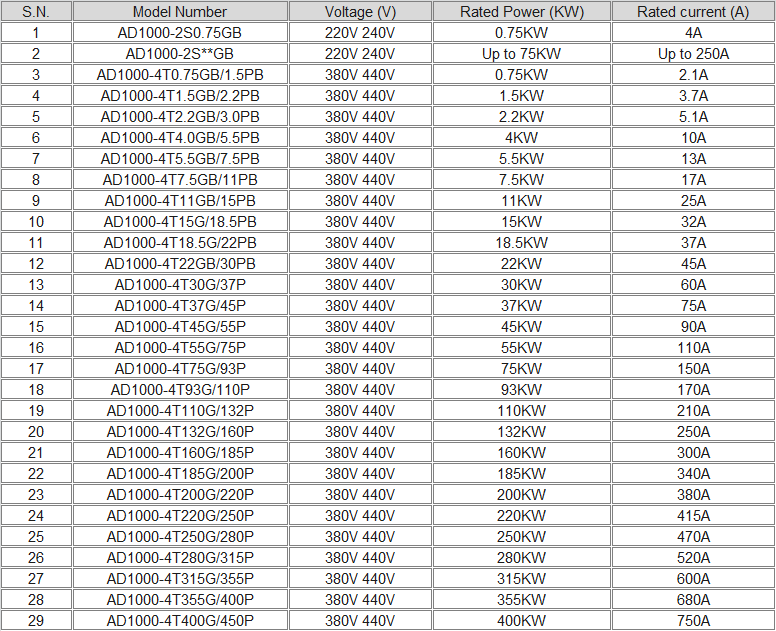

AD1000 series VFD Model List

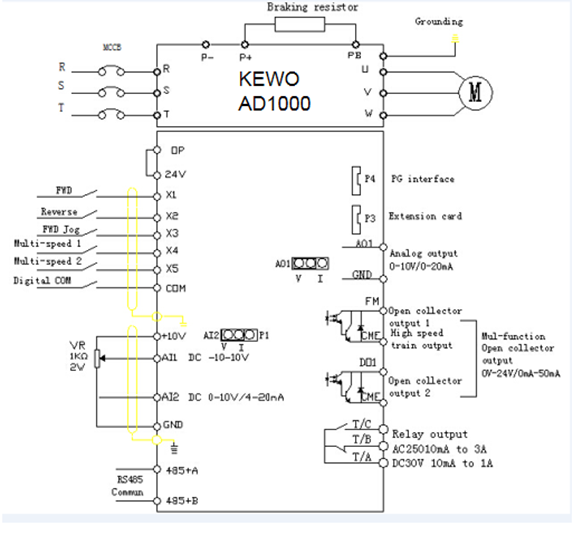

AD1000 series inverter connection diagram

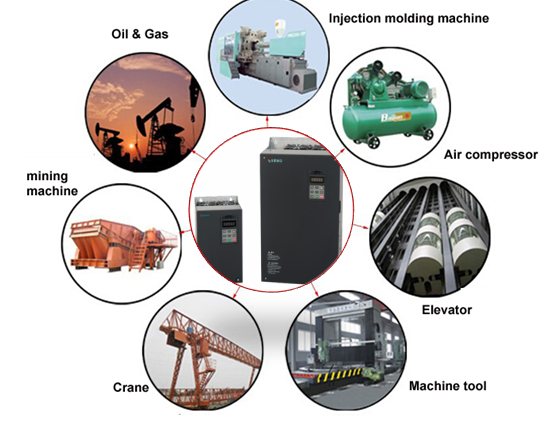

AD1000 Series VFD Application
AD series high performance inverter better being used in various application with high accuracy speed control quick torque response and starting torque.
Textile: P-jump Winders, Extruders, Tufting Machines, spinning machine.
Packaging: In-feed / Out-feed, Case Packing, Bottling & Canning, Carton Manufacturing, Beverage packing.
Plastics & Rubber: Extruders, Blow Molding, Thermoforming, Injection Molding.
Pulp & Paper: Paper Machines, Debarkers, Winders, Saw Mills.
Converting: Coaters, Laminators, Slitters, Flying Cutters.
Air Handling: Supply and Return Fans, Cooling Towers, Spray Booths, Dryers.
Oil & Gas: Top Drives, Pumpjacks, Down-hole Pumping Centrifuges.
Material Handling: Conveyors, Sortation, Palletizers, Coil Winding.
Metals: Stamping / Punch Press, Wind /Unwind, Cut-to-length,cable drawing, Wire Draw.
Construction Materials: Kilns, Planers, Flying Cutoff, Mixers.
Laundry: Dryers, Extractors, Folders, Washers.
Food & Beverage: Conveyors, Fillers, Mixers, Centrifuges.
Automotive: Stamping, Test Stands, Indexing, Metal Cutting.
Construction crane, hoist, lifting
