Product color and some functions can be customized (OEM/ODM)
◆ It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%，and converter efficiency up to 98%.
◆ Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
◆ Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control.
◆ Battery system voltage automatic recognition.
◆ Three kinds of commonly used lead-acid battery (Seal\Gel\Flooded) parameter settings fcan be selected by the user, and the user can also customize the parameters for other battery charging.
◆ It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.
◆ High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.
◆ RS485 communication, we can offer communication protocol to convenient user's integrated management and secondary development.
◆ Support PC software monitoring and WiFi module to realize APP cloud monitoring.
◆ CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications.
◆ 3 years warranty, and 3~10 years extended warranty service also can be provided.

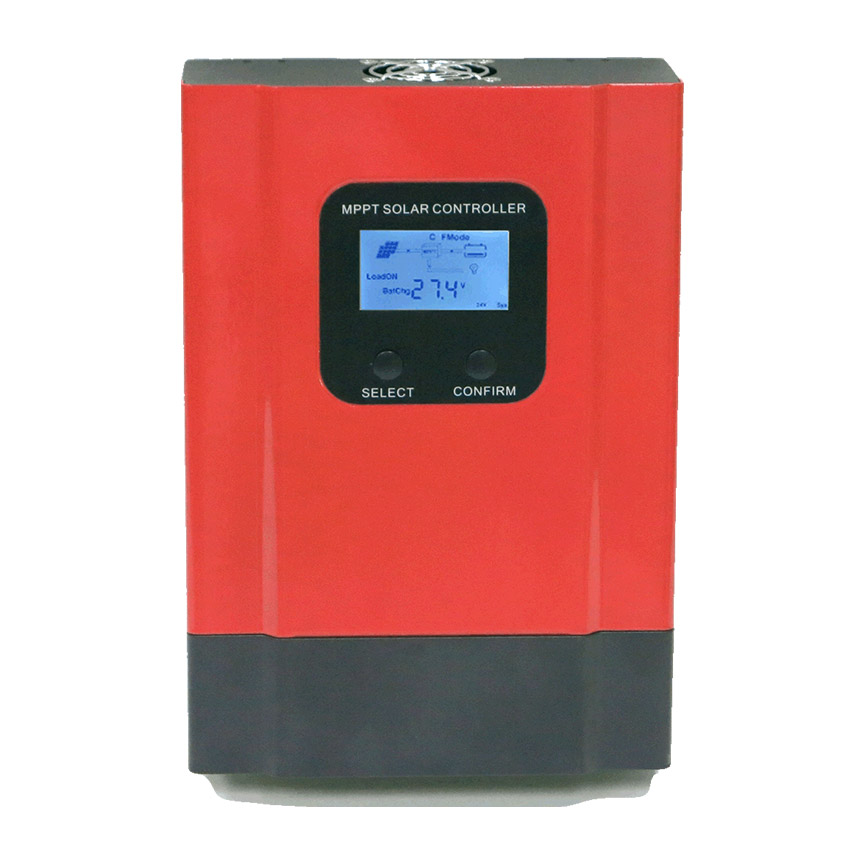

| eSmart3 series | eSmart3-20A | eSmart3-30A | eSmart3-40A | eSmart3-50A | eSmart3-60A | ||||||
| Product category | Controller Properties | MPPT (maximum power point tracking) | |||||||||
| MPPT efficiency | ≥99.5% | ||||||||||
| Standby power | 0.5W~1.2W | ||||||||||
| System voltage | Automatic recognition | ||||||||||
| Heat-dissipating method | Intelligent fan cooling | ||||||||||
| Input Characteristics | Max.PV input voltage(VOC) | DC150V | |||||||||
| Start the charge voltage point | Battery voltage + 3V | ||||||||||
| Low input voltage protection point | Battery voltage + 2V | ||||||||||
| Over voltage protection point | DC150V | ||||||||||
| Rated PV power | 12V system | 260W | 390W | 520W | 650W | 780W | |||||
| 24V system | 520W | 780W | 1040W | 1300W | 1560W | ||||||
| 36V system | 780W | 1170W | 1560W | 1950W | 2340W | ||||||
| 48V system | 1040W | 1560W | 2080W | 2600W | 3120W | ||||||
| Charge Characteristics | Selectable Battery Types | Sealed lead acid, Gel battery, Flooded | |||||||||
| (Default Gel battery) | (Other types of the batteries also can be defined) | ||||||||||
| Charge rated current | 20A | 30A | 40A | 50A | 60A | ||||||
| Charge Method | 3-Stage: constant current(fast charging)-constant voltage-floating charge | ||||||||||
| LOAD Characteristics | Load voltage | The same as the battery voltage | |||||||||
| Load rated current | 40A | 60A | |||||||||
| Load control mode | On\Off mode, PV voltage control mode, | ||||||||||
| Dual-time control mode, PV + Time control mode | |||||||||||
| Display & Communication | Display mode | High-definition LCD segment code backlight display | |||||||||

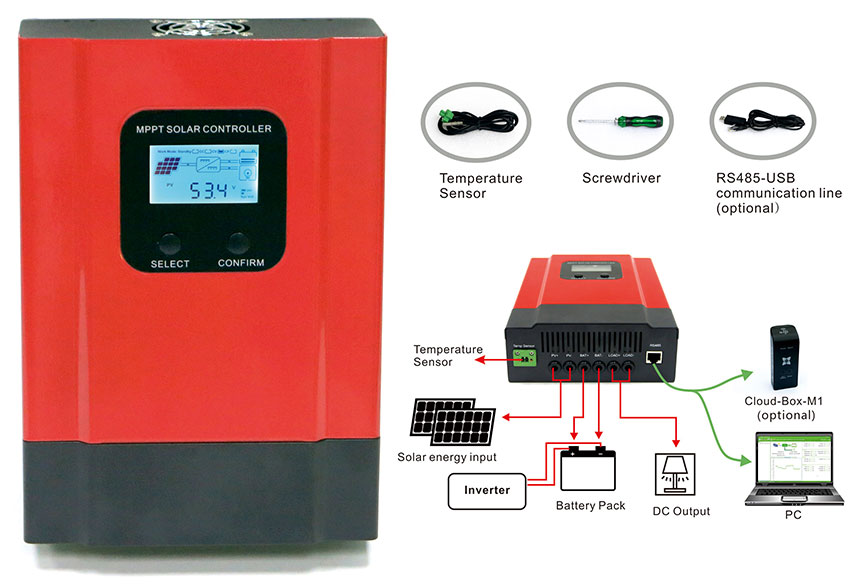

| Communication mode | 8-pin RJ45 port/RS485/support PC software monitoring/ | ||||||||||
| support WiFi module to realize APP cloud monitoring | |||||||||||
| Other Parameters | Protect function | Input-output over \ under voltage protection, | |||||||||
| Prevention of connection reverse protection,battery shedding protection etc. | |||||||||||
| Operation Temperature | -20℃~+50℃ | ||||||||||
| Storage Temperature | -40℃~+75℃ | ||||||||||
| IP(Ingress protection) | IP21 | ||||||||||
| Max. connection size | 20mm2 | 30mm2 | |||||||||
| Net Weight (kg) | 2.3 | 2.6 | |||||||||
| Gross Weight (kg) | 3 | 3.5 | |||||||||
| Product Size（mm） | 240*168*66 | 270*180*85 | |||||||||
| Packing Size(mm) | 289*204*101 | 324*223*135 | |||||||||
